Titan 10 Inch Integral Disc Brake Kit for Trailers - 5 Lug, 3,500 lb. Axle
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Titan Disc brake, 5 Lug 3,500lb capacity integral disc brake kit. Kit is designed to fit on 3,500lb capacity axles using the standard 4 bolt brake flange. This is an Integral set, which means the hub and rotor are cast together as one piece to provide a smoother ride and braking. The hub is a 5 on 4 inch bolt pattern.
This disc brake kit will fit with 13 inch or larger wheels.
Product Details

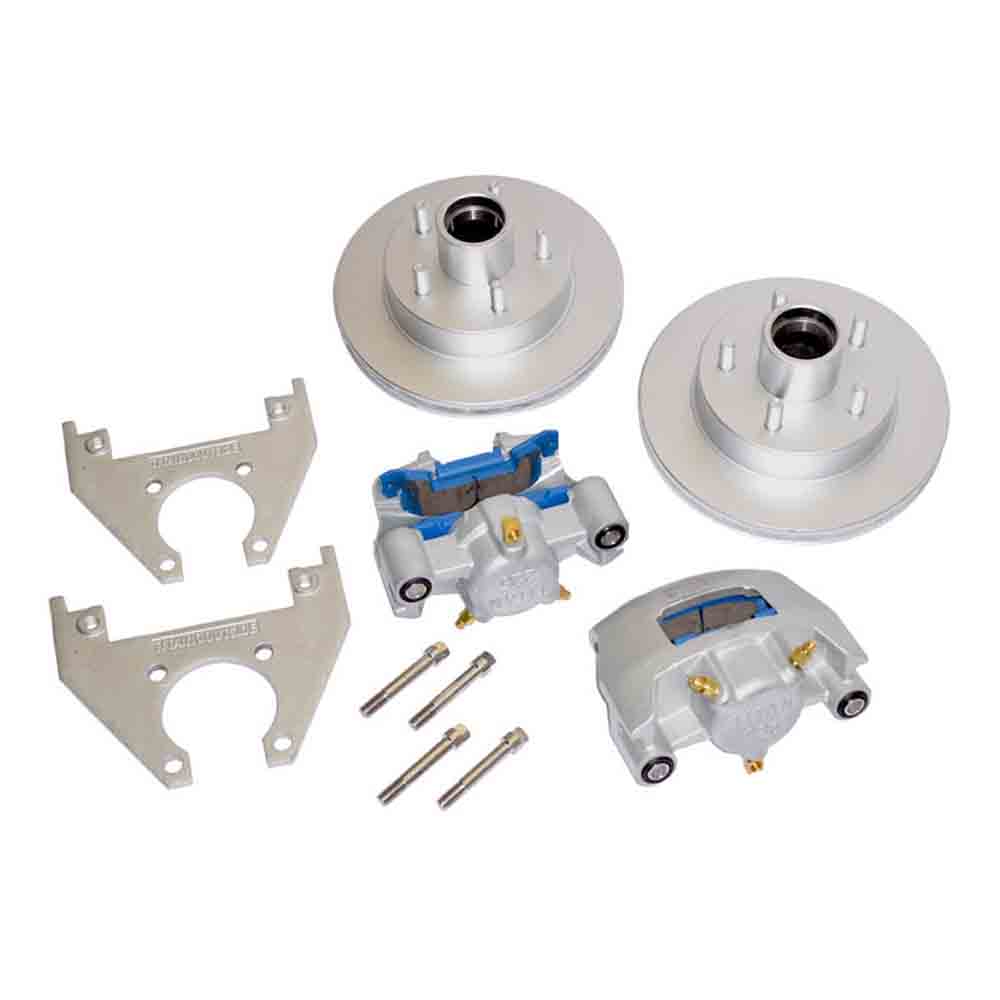

Complete disc-brake set-up for a single axle. Kit includes two 10 inch integral hub/rotors that have the 5 bolt on 4-1/2 bolt center configuration, two calipers and two caliper brackets, races and bolts.
Fits the standard 3,500 lb tapered spindles that equipped with a 1-3/8 inch inner bearing and 1-1/16 inch outer bearing - measured inside diameter.
Bearings, seals and nuts are sold separately.
- Fits tire sizes 13 inches and larger
- 4-bolt flange configuration
- E-coat plating - excellent for saltwater
Specifications
| Brand | Titan |
|---|---|
| Brake Diameter | 10 inch |
| Capacity | 3,500 lbs. |
| Mounting Side | Both |
