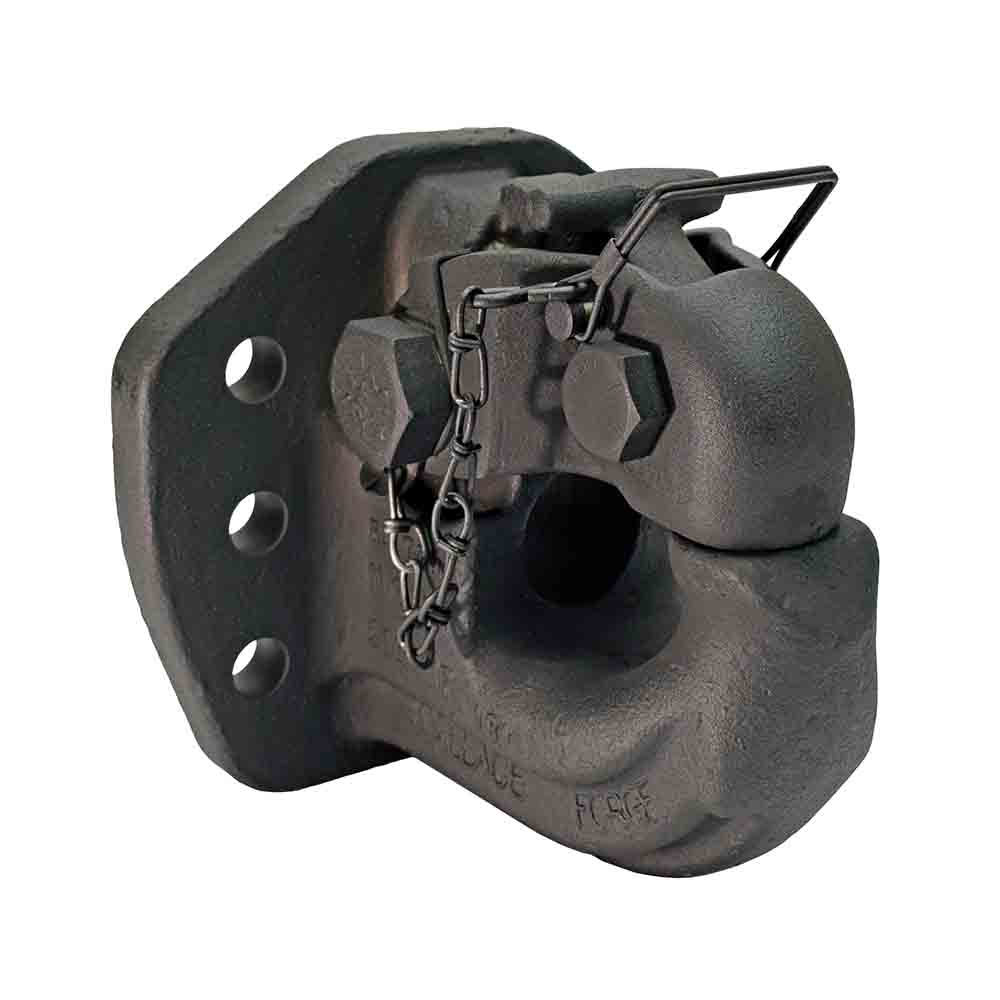

Wallace Forge 50 Ton 6 Bolt Rigid Mount Pintle Hook Without air Actuator
SKU
2060117NA
List Price:
$596.95
Wallace Forge 50 Ton 6 Bolt Rigid Mount Pintle Hook Without air Actuator
$
557.42
Out Of Stock Special Order
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
50 Ton 6 Bolt Rigid Mount Pintle Hook Without air Actuator
Product Details
These Pintle Hooks are to be used with a drawbar with a 2-3/8" - 3" diameter eye and a ring thickness 1-1/4" to 1-5/8". Mounting holes are 6" side to side and 3-3/4" top to bottom and accept 3/4" Grade 8 bolts which are sold separately. Rated 50 ton capacity, 20,000 lbs. maximum vertical load.
Mounts to commercial truck body hitch plates only of at least 7/8" thickness.
Specifications
| Brand | Wallace Forge |
|---|---|
| Finish | Black Painted |
| Gross Towing Weight (WC) | 100,000 lbs. |
| Made In | USA |
| Tongue Weight | 20,000 lbs. |
