Pair of 5-Bolt On 4-1/2 Inch Hub Assemblies with Square Shaft 1-1/16 Inch Straight Spindles & Bearings - for 2,200 lb Axle

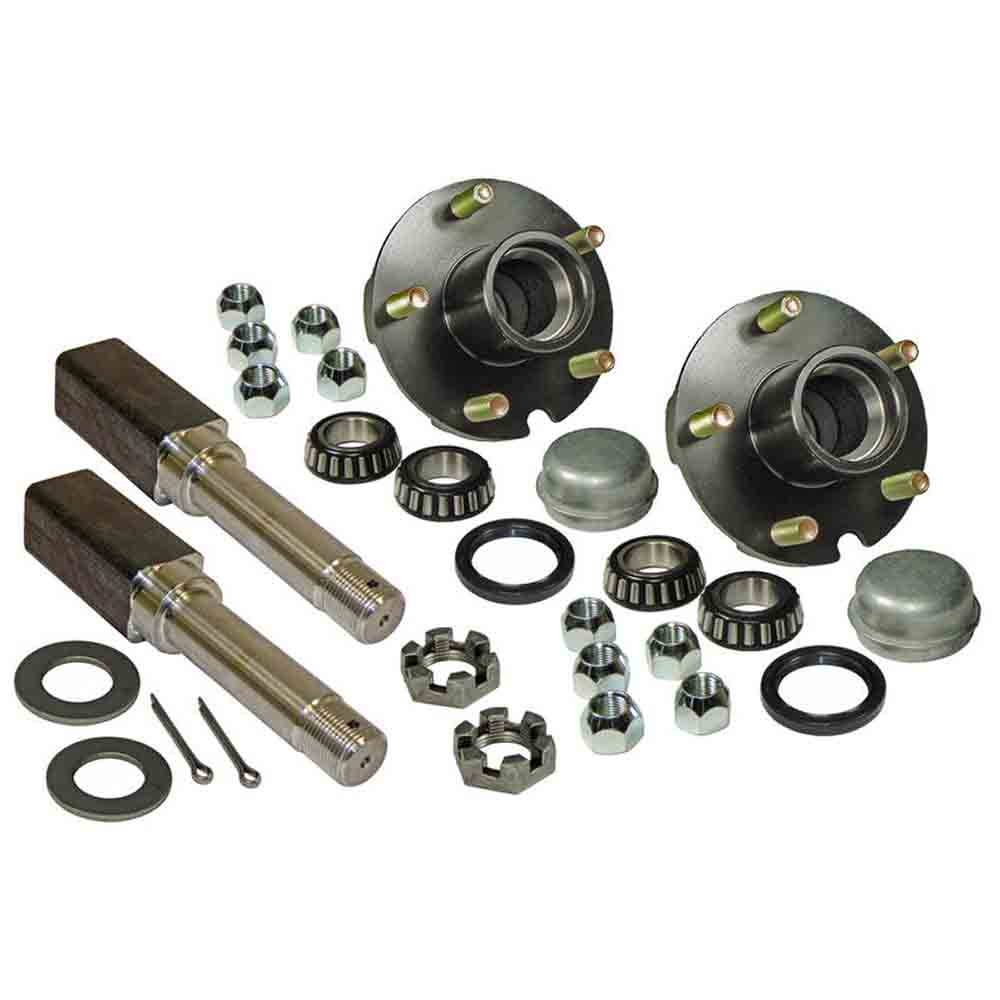

Easily build your own axle with this 2,200 lb. rated assembly. This kit includes (2) - 5-bolt on 4-1/2 inch bolt center hubs for 2,200 lb. axles, (2) - 1-1/16 inch straight spindles, (2) castle nuts, (2) cotter pins, (10) 1/2-20 lug nuts, (2) 1.987 O.D. x 1.50 I.D. grease seals, (4) L-44649 1-1/16 inch I.D. inner/outer bearings and (2) 1.986 O.D. x 1.16 inch depth, dust caps.

• Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

• Pair of 1-1/16 inch straight spindles includes castle nuts and cotter pins
• Bearings included - (4) L-44649 1-1/16 inch inside dimension
• Hubs have pre-installed pressed in races
• Hubs have a 5-bolt pattern on 4-1/2 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.
• Spindles feature a SQUARE 1-1/2 inch stock diameter with a bearing surface of 1-1/16 inch
• See picture 2 for spindle dimensions
