Wallace Forge Adjustable Forged Tow Ring with 3 Position Channel Assembly - 30,000 lbs. Tow Capacity
SKU
AR3-049
List Price:
$154.95
Wallace Forge Adjustable Forged Tow Ring with 3 Position Channel Assembly - 30,000 lbs. Tow Capacity
$
140.67
Out-Of-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Wallace Forge Adjustable Forged Tow Ring with 3 Position Channel Assembly - 30,000 lbs. Tow Capacity, 2,000 lbs. Tongue Weight
Product Details

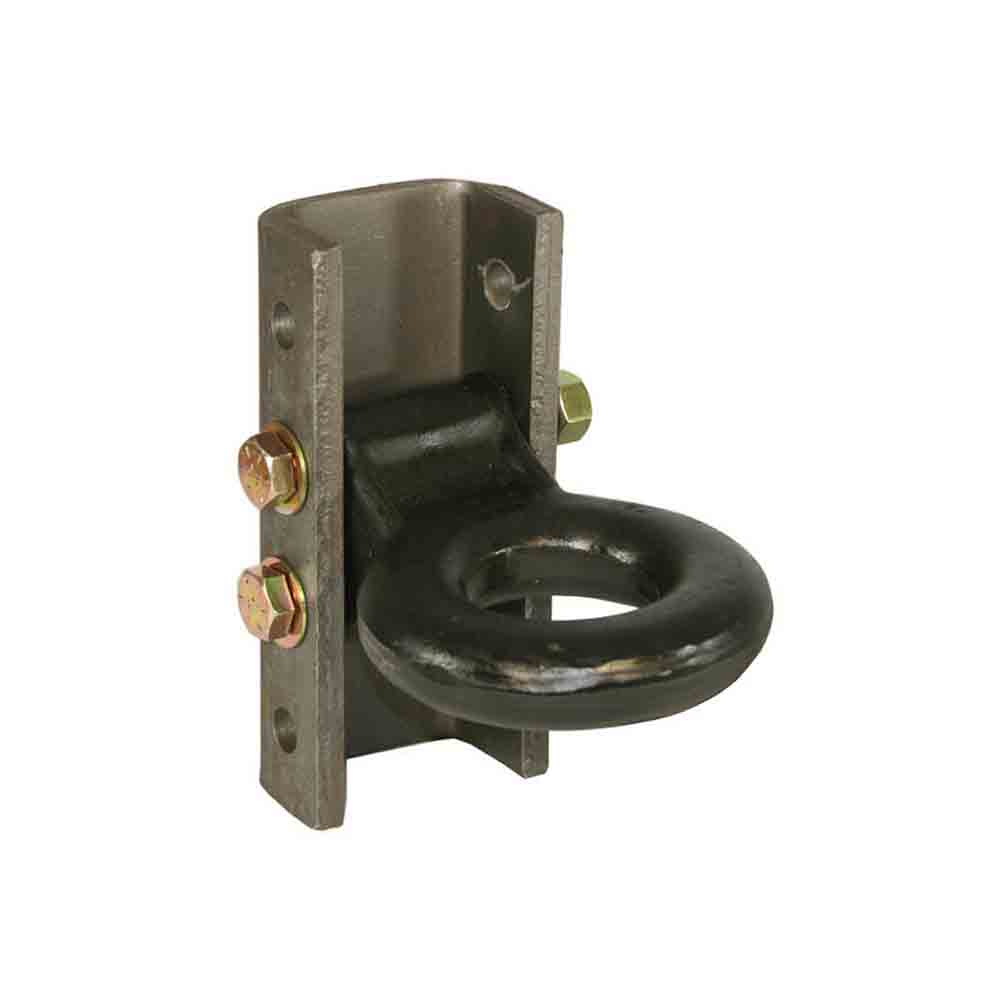

Assembly includes a lunette ring, 3 position channel and grade 8 mounting hardware. Dimensions of ring- 2-1/2 inches I.D, 1-3/8 inch ring thickness diameter and fits in a 2-7/8 inch channel (included). Channel height 8 inches overall and can be moved in increments of 2 inches.
- Raw Finish
- Do not weld forged rings, channel only
- Do not overly torque or tighten nuts to try and take the play out. Failure will occur if nuts and bolts are over-torqued.
- Wallace Forge #2374143
- Made in USA
Dimensions:
A = 2-1/2"
B = 1-3/8"
C = 8-1/2"
Specifications
| Brand | Wallace Forge |
|---|---|
| Channel Width | 2-7/8 inch |
| Finish | Unpainted |
| Gross Towing Weight (WC) | 30,000 lbs. |
| Made In | USA |
| Ring Diameter | 2-1/2 inch |
| Tongue Weight | 2,000 lbs. |
