10-Pack - Heavy Duty, Weld-On, 1 Inch Forged Tie-Down D-Ring
SKU
B-48-10
List Price:
$323.95
10-Pack - Heavy Duty, Weld-On, 1 Inch Forged Tie-Down D-Ring
$
204.57
Out-Of-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

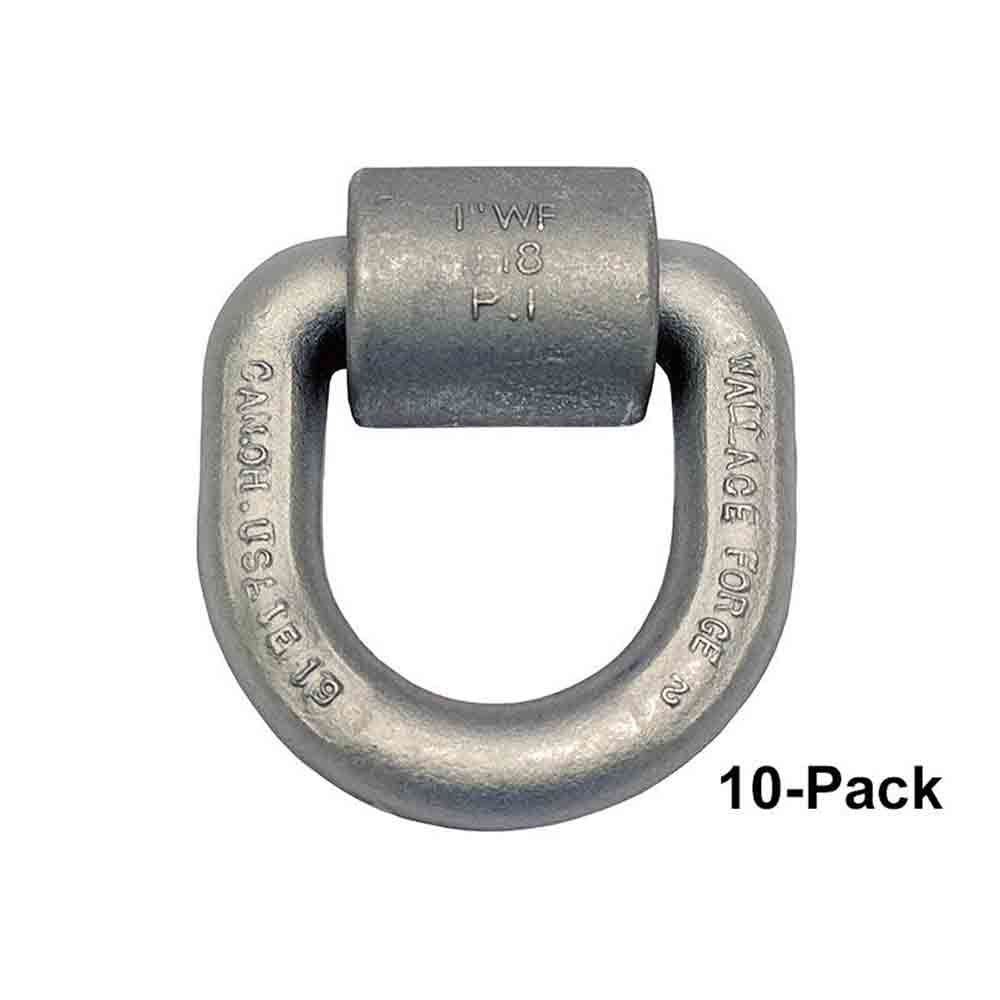

Heavy Duty Weld-On Tie-Down Ring - 10-Pack
Product Details
Surface mounted Heavy Duty Weld-On Tie-Down Ring for trucks and trailers. Unfinished steel 1 inch D-Ring measures 5 inches O.D., 3 inches x 3 inches I.D. Rated 15,000 pounds working load limit, 46,758 lbs. maximum breaking strength. Wallace Forge part number 2329221.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Dimensions: Ring - 1" Diameter, Bracket 2-1/8" Wide x 3/8" Thick
- Mounting Style: Weld-On
- Finish: Unplated Natural Finish
- Sold as a 10-pack
Specifications
| Brand | Wallace Forge |
|---|---|
| Finish | Raw Steel |
| Width | 5 inch |
| Breaking Strength | 46,758 lbs. |
| Working Load Limit | 15,000 lbs. |
| Mounting Style | Weld-On |
| Inside Diameter | 3 inch |
