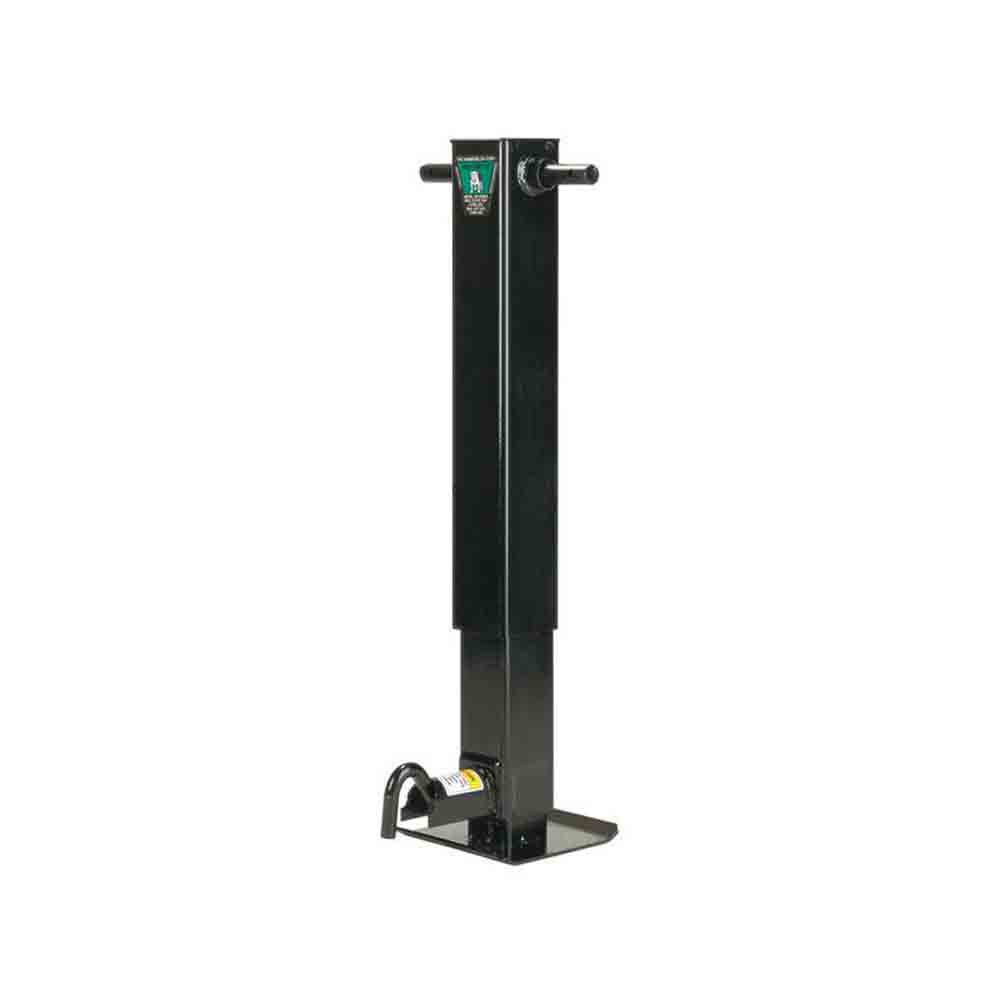

Bulldog Heavy Duty Square Trailer Jack, 12,000 lbs. Support Capacity, Side Wind, 12-1/2 in. Travel, No Handle
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
Crank handle sold separately
- 12.5" Travel
- 10,000lb Capacity
Product Details
Bulldog Square Jack being Strong, durable and sturdy, has carried the load in agricultural, construction and horse/livestock trailer industries since 1923.
Crank handle sold separately
- 12.5" Travel
- 10,000lb Capacity
- No mounting hardware.
- Mounting is done by direct weld
- Bulldog model number SWQ 180 DL-BX
- Sidewind design - can be used in tandem
- 4" square tubing, 7 gauge superior alloy steel
- Drop leg pull pin positioned to the FRONT of the jack
- 13.5" of additional drop leg extension with standard disc foot
Not Included:
Crank handle HB-15181
Specifications
| Brand | Bulldog |
|---|---|
| Jack Type | Side Wind |
| Extended B | 54.6 inch |
| Finish | Black |
| Lift Capacity | 10,000 lbs. |
| Mounting | Weld on |
| Retracted A | 28.6 inch |
| Support Capacity | 12,000 lbs. |
| Travel | 12-1/2 inch |
