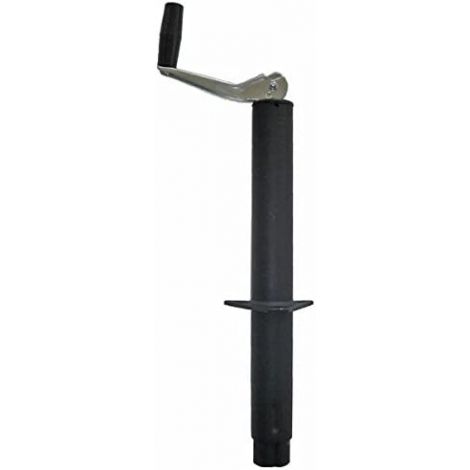

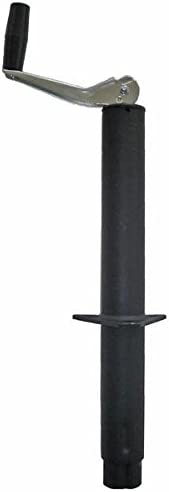

RAM A-Frame Trailer Jack - 2,000 lbs. Capacity Top Wind Jack with Bracket
SKU
TJA-2000-B
List Price:
$57.95
RAM A-Frame Trailer Jack - 2,000 lbs. Capacity Top Wind Jack with Bracket
$
34.99
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Pacific Rim (RAM) A-Frame Trailer Jack 2,000 lbs. Capacity Top Wind with Bracket - 14 travel distance, 8.25 bracket height from bottom of jack to bolt flange, 21.25 jack height when fully retracted.
Similar to Bulldog Jack HB-155022
Product Details
For use with trailers with A-frame couplers
- 14 inch travel. 20" retracted, 34" extended
- 3,000lb Support Capacity / 2,000lb Lift Capacity
- 2-1/4" outer tube diameter, 2" inner tube diameter
- Durable exterior grade black powder coat finish on outer and inner tubes
- Large grooved comfort handle to operate the jack
- Mounting hardware not included
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Top Wind |
| Clearance C | 13 inch |
| Extended B | 34 inch |
| Finish | Black Powder Coat |
| Inner Tube | 2 inch |
| Lift Capacity | 2,000 lbs. |
| Mounting | Bolt on |
| Mounting Style | Bolt-On or Weld-On |
| Outer Tube | 2-1/4 inch |
| Retracted A | 20 inch |
| Support Capacity | 3,000 lbs. |
| Travel | 14 inch |
| Warranty | Limited 1 Year Warranty |
