2,200 lb. Straight Axle Tube - 62 Inch Hub Face
SKU
M-2248
List Price:
$221.34
2,200 lb. Straight Axle Tube - 62 Inch Hub Face
$
158.78
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
2,200 lb. Straight Axle Tube - 62 Inch Hub Face
Product Details

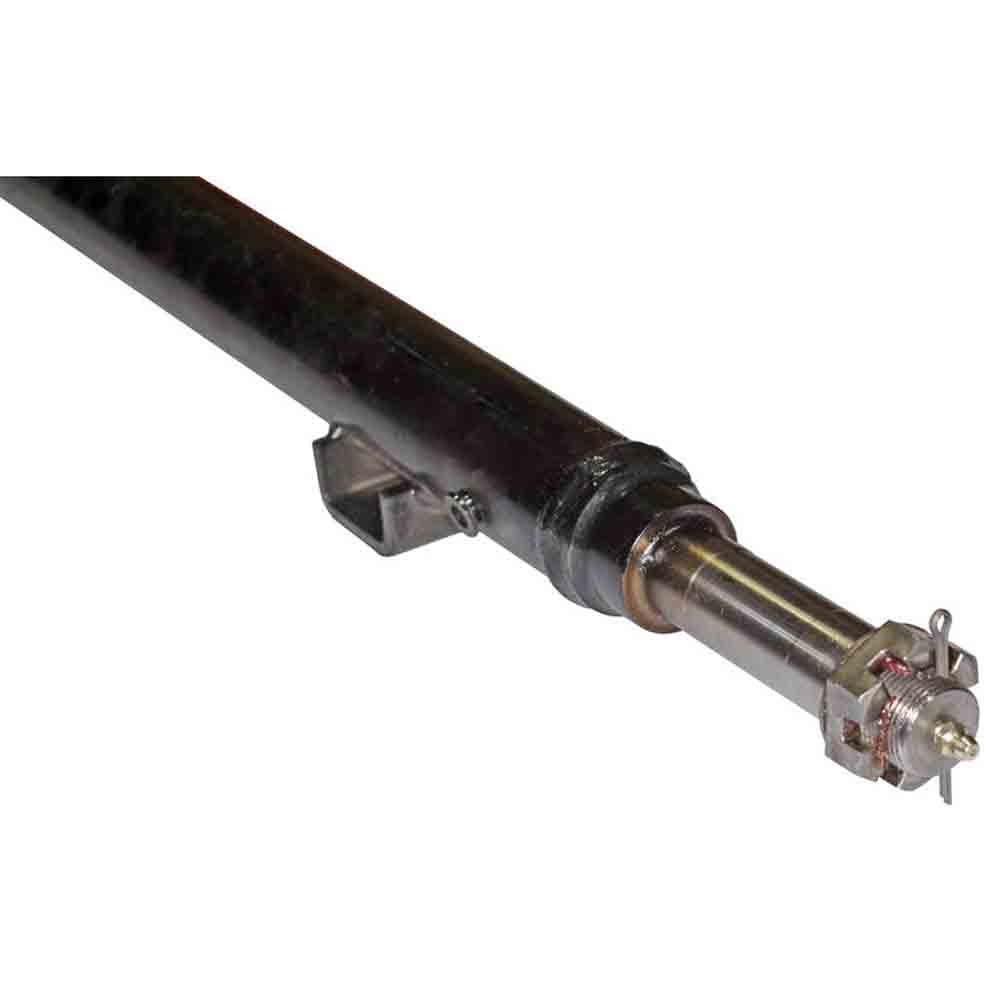

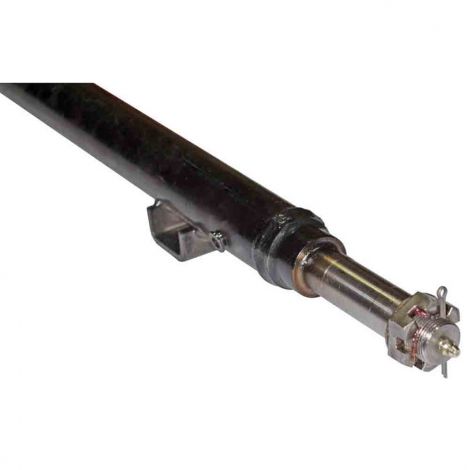

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Springs are sold separately. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- 1-1/16 inch straight spindles with castle nuts and cotter pins
- Used on boat trailers, tent campers, utility and snowmobile trailers
Specifications
| Brand | Lippert |
|---|---|
| Capacity | 2,200 lbs. |
| Mount Width | 48 inch |
| Overall Width | 66-1/2 inch |
| Seal Surface Diameter | 1.50 inch |
| Spring Seats | Attached |
| Width At Hub Face | 62 inch |
