3,500 lb. Straight Axle Assembly with Brake Flanges & 5-Bolt on 4-1/2 Inch Hubs - 74 Inch Hub Face

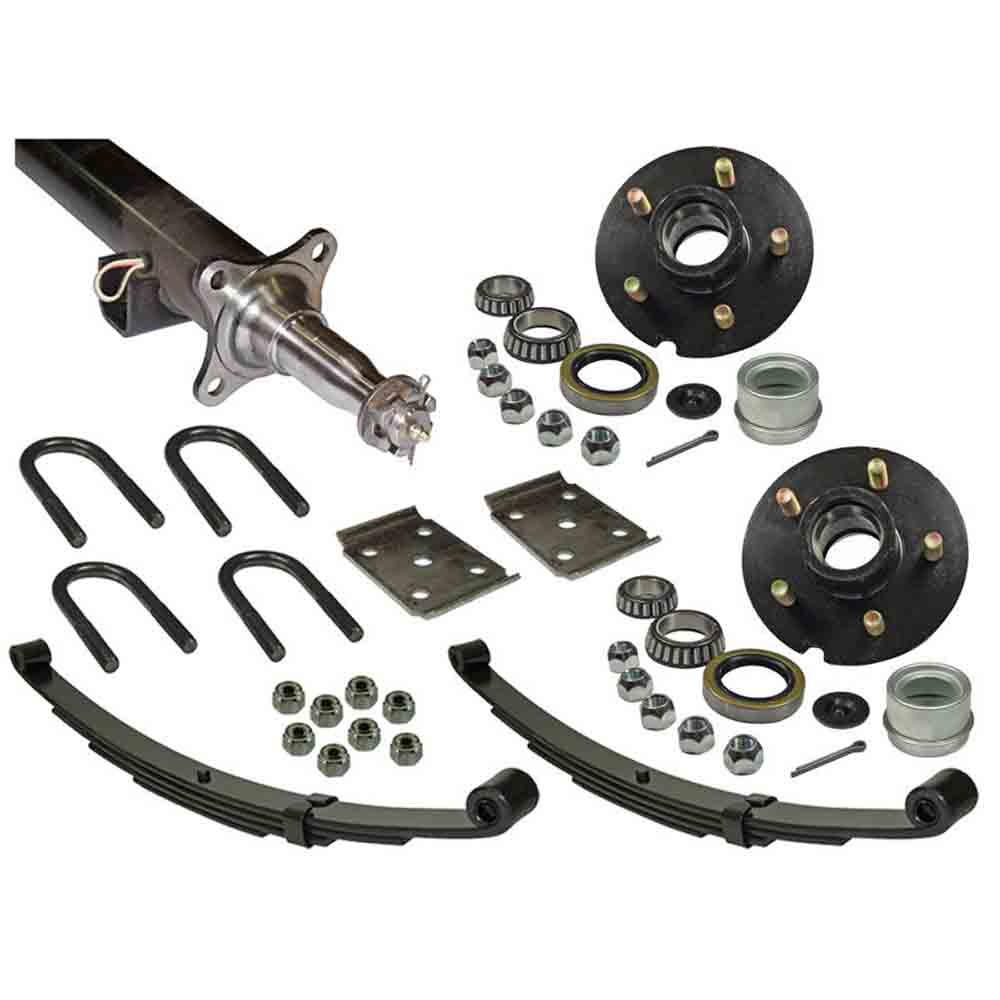

3,500 lb. straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 5 on 4-1/2 inch hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

• Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
• Includes (2) 5 on 4-1/2 inch studded hubs with bearings, seals and grease caps
• Includes double eye springs with U-bolts, tie plates and lock nuts
• 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
• Axle includes flanges for mounting drum or disc brakes (sold separately)
• Used on boat trailers, tent campers, utility and snowmobile trailers
