10 Ton Pintle Hook Combo Kit, Includes Mounting Plate and Hardware (PH-10-10KIT)
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

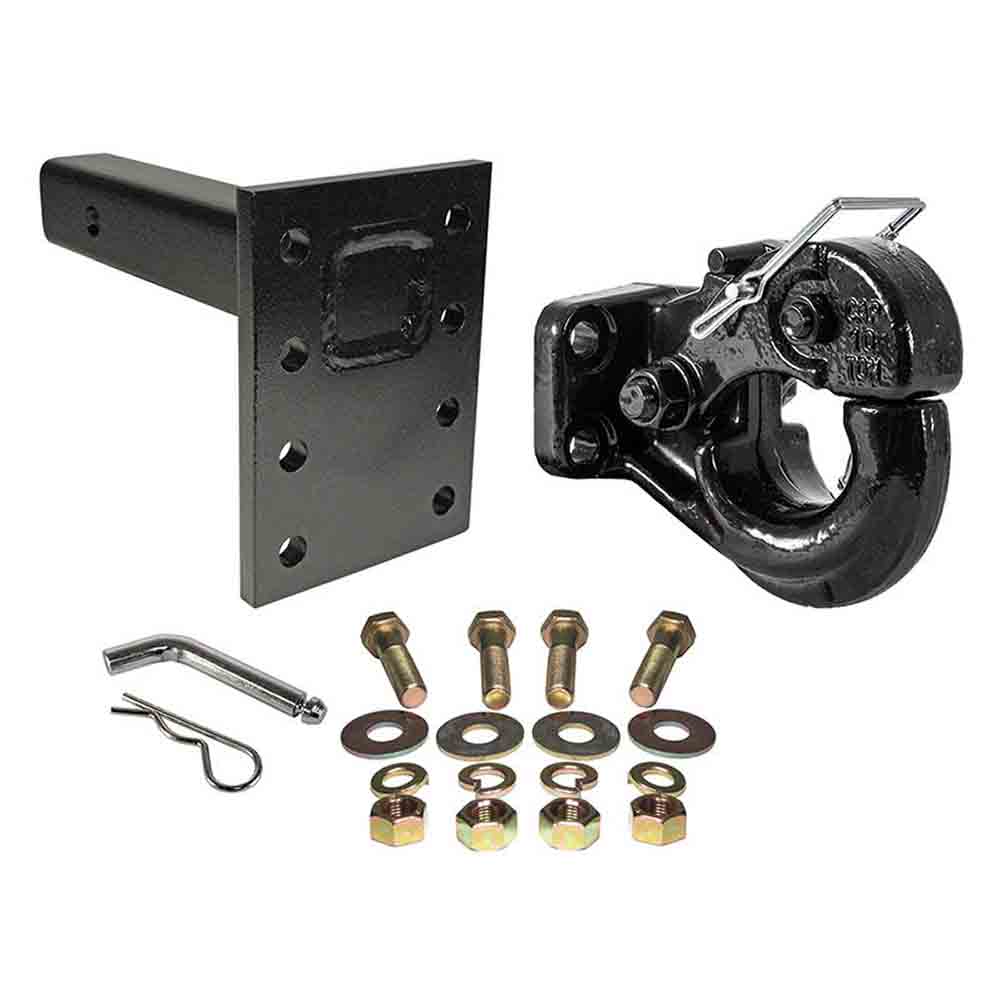

10 Ton Pintle Hook Combo Kit Includes - Pintle Hook (PH-10), Mounting Plate (RMP-10), Mounting Hardware (MK-128) and Pin & Clip (HP-1020)
Replaced part #PH-10-10KIT
Product Details
Solid shank pintle hook mounting plate for 2 inch receivers. See specifications below.
The 10 ton pintle hook is equipped with a tethered pin. 20,000 lbs gross trailer weight rating / 4,000 lbs tongue weight rating. The pintle mounting plate is rated 15,000 lbs gross trailer weight and 1,500 lbs tongue weight.
Also included are four grade 8 bolts, nuts and washers to attach the pintle hook to the mounting plate and a 5/8" diameter pin and clip for mounting the assembly in any 2 inch receiver.
Please note: Pintle mount is rated for 15,000 lbs., pintle hook is rated for 20,000 lbs.
- Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
- Provides mounting for both ball and pintle or rigid type Pintle Hooks
- Pintle mount - black powder coat finish / Pintle hook - black painted finish
- Pintle hook has the standard bolt hole configuration - 1-3/4" x 3-3/8"
- Drop forged construction
- Pintle mount is made in U.S.A. - Pintle hook is made offshore
Specifications
| Brand | Rigid Hitch |
|---|---|
| Finish | Black Powder Coat |
| Fits | 2 Inch Receivers |
| Height C | 7 inch |
| Height G | 1-3/4 inch |
| Hole E | 5/8 inch |
| Hole Sets | 4 |
| Mounting Bolt Pattern | 1-3/4 inch x 3-3/8 inch |
| Shank Length A | 8-1/4 inch |
| Shank Length B | 2-1/2 inch |
| Shank Size | 2 inch |
| Shank Type | Solid |
| Tongue Weight | 1,500 lbs. |
| Width D | 5 inch |
| Width F | 3-3/8 inch |
