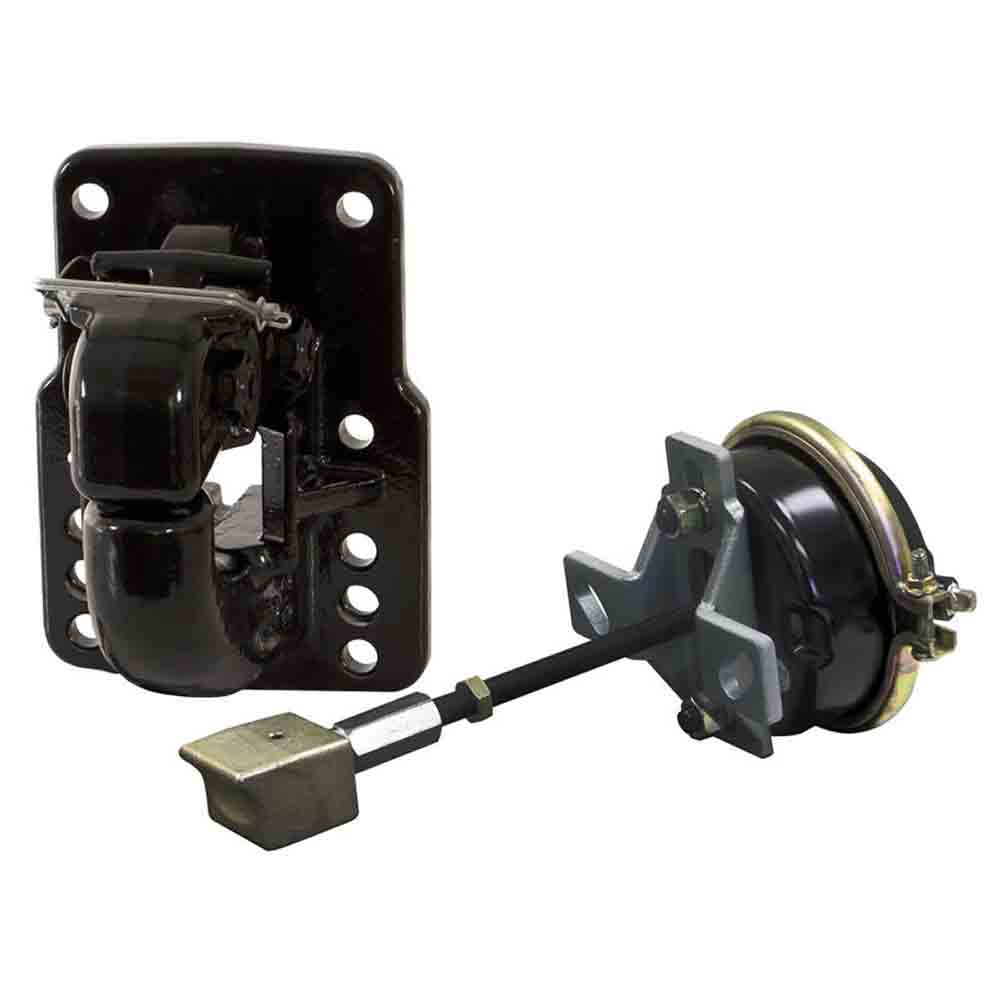

Buyers Products 50 Ton, 10 Bolt Air Compensated Pintle Hook With Air Chamber And Plunger
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
The 50 Ton Air Compensated Pintle Hitch from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.
The pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.
Product Details
This heavy duty 50 Ton Pintle Hook is made to mount on commercial truck body hitch plates only. It cannot be used with pintle mounts which install into receiver style hitches. The plunger provides minimum clearance with maximum shock absorption. 3/4 inch mounting hardware required - sold separately.
This item requires the purchase of (2) MK-134 bolt packs for installation. See instruction sheet for mounting pattern.
- Drop forged alloy steel
- Mounts to commercial truck body hitch plates only
- Black painted finish
- See installation instructions for bolt hole configurations and mounting pattern
- Drawbar eye dimensions: 2-3/8" to 3" I.D with a 1-1/4" to 1-5/8" diameter cross section
- Interchanges with Holland PH400
- This product can be utilized with or without the air chamber and plunger
Specifications
| Brand | Buyers |
|---|---|
| Finish | Black Powder Coat |
| Gross Towing Weight (WC) | 100,000 lbs. |
| Mounting Bolt Pattern | 8-7/16 inch x 5 inch |
| Tongue Weight | 20,000 lbs. |
