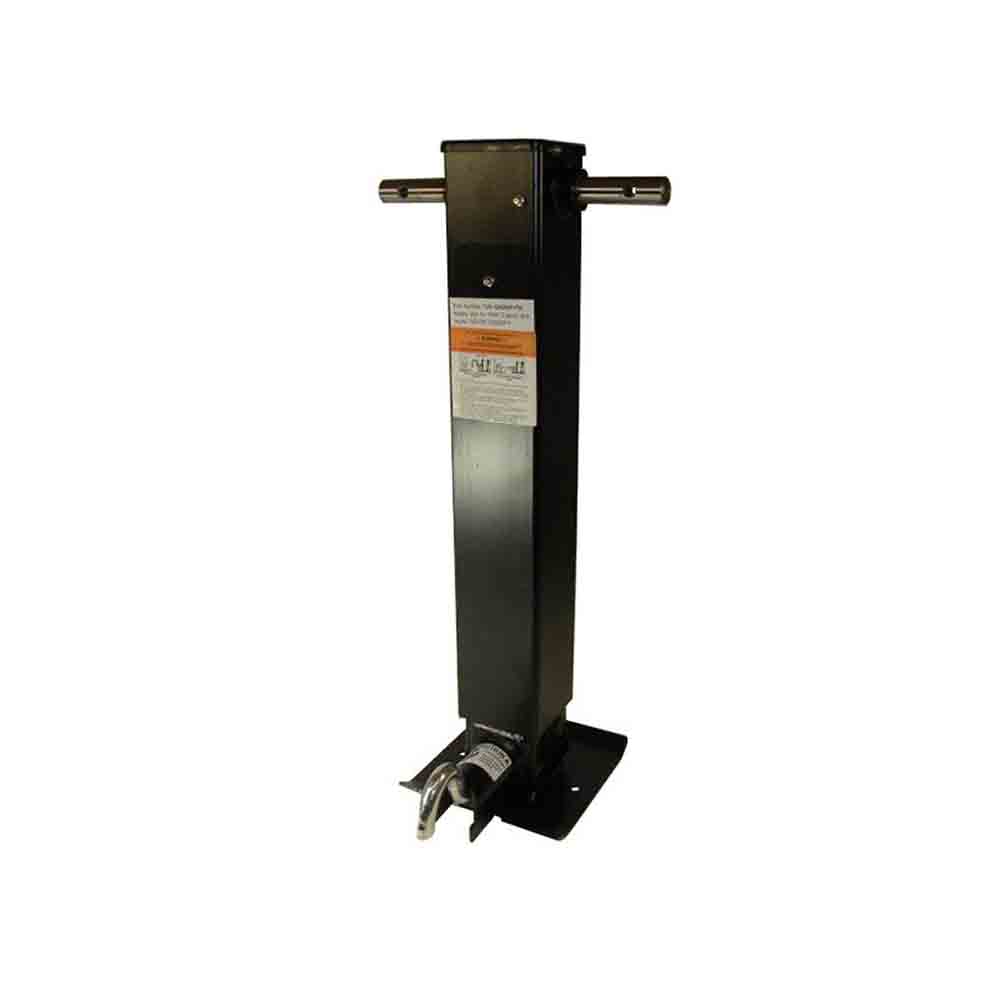

Heavy-Duty Single-Speed Companion Square Tube Jack
Product Details
This 12K support capacity jack is designed to be welded directly to the trailer. 10,000 lbs. lift capacity.
- This Companion jack MUST be used with the 12K 2-Speed Jack - TJD5SP-12K (sold separately). See Related Items below.
- Pull pin is faced toward the tow vehicle and handle post is sidewind
- Brass bushings for easier cranking and reduced wear
- Black painted inner and outer tube
- Easy access gear box with a grease fitting for routine maintenance
- 1-1/4 inch diameter jack screw
- 9 X 9 inch foot with drain holes
- Drop leg adds 13.75 inches of adjustability
MFG. #TJD-12500SP-F2NH
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Side Wind |
| Extended B | 41 inch |
| Finish | Black |
| Lift Capacity | 10,000 lbs. |
| Mounting Style | Weld-On |
| Outer Tube | 4 inch |
| Retracted A | 28-1/2 inch |
| Support Capacity | 12,000 lbs. |
| Travel | 12-1/2 inch |
| Warranty | Limited 1 Year Warranty |
