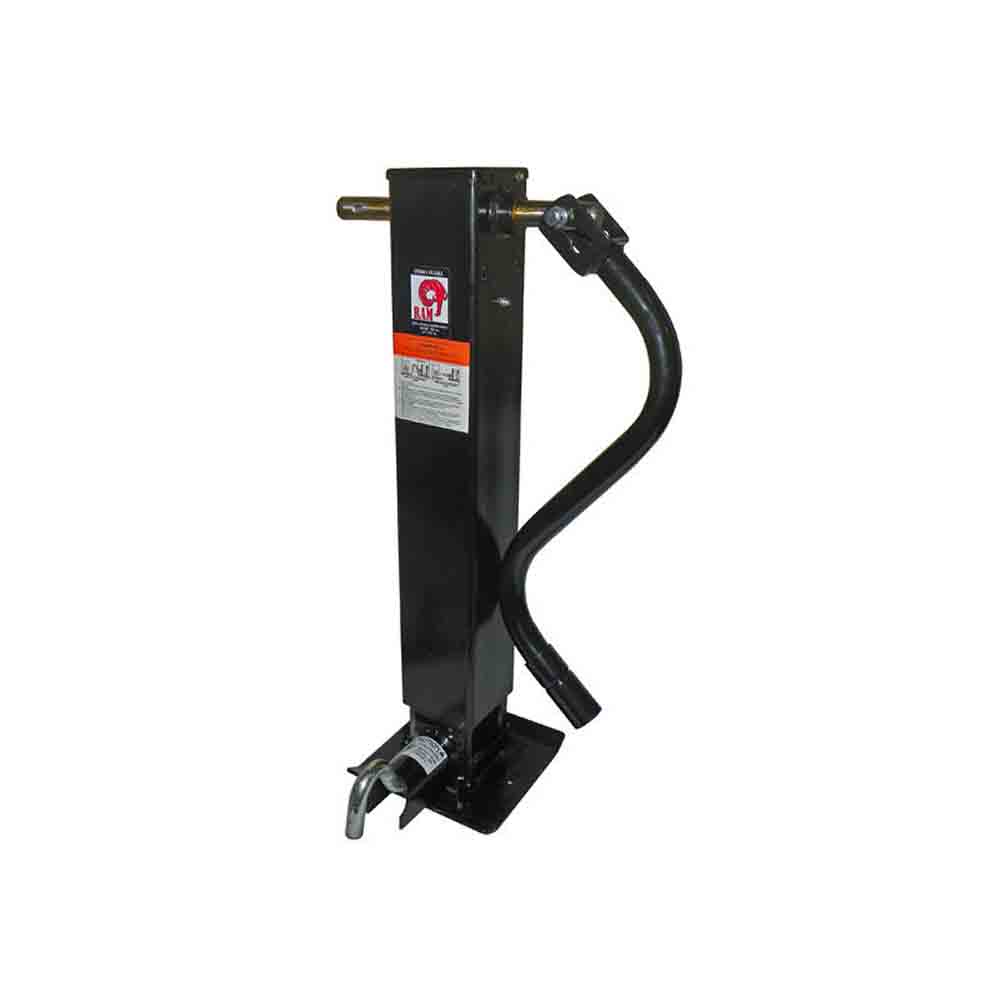

Heavy Duty Square Tube Drop Leg Jack - Weld On - 15K
SKU
TJD-15K-F
List Price:
$395.78
Heavy Duty Square Tube Drop Leg Jack - Weld On - 15K
$
309.20
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Heavy Duty Square Tube Drop Leg Jack - 15K
Includes crank handle
Product Details
Heavy Duty Square Tube Jack with FRONT facing pull pin and spring return drop leg. 12,000 lbs. lift capacity and 15,000 lbs. support capacity. INCLUDES CRANK HANDLE.
- 12,000 pound lift capacity, 15,000 support capacity
- 13 inches of additional drop leg extension with standard disc foot
- Drop leg pull pin positioned to the FRONT of the jack
- Sidewind design - can be used in tandem
- Mounting is done by direct weld
- 9 x 9 inch foot plate with weep holes for water drainage
Mfg. #TJD-15000SP-F
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Side Wind |
| Extended B | 55-1/2 inch |
| Finish | Black Powder Coat |
| Lift Capacity | 12,000 lbs. |
| Mounting Style | Weld-On |
| Outer Tube | 4-3/8 inch |
| Retracted A | 29-1/4 inch |
| Support Capacity | 15,000 lbs. |
| Travel | 12-1/2 inch |
| Warranty | Limited 1 Year Warranty |
