Ram 5,000 lb. Support, 3,000 lb. Lift Capacity, Swivel Pipe Mount, Top Wind Trailer Jack
SKU
TJP-5001-B
List Price:
$64.95
Ram 5,000 lb. Support, 3,000 lb. Lift Capacity, Swivel Pipe Mount, Top Wind Trailer Jack
$
44.60
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Ram 5,000 lb. Support, 3,000 lb. Lift Capacity, Swivel Pipe Mount, Top Wind Trailer Jack
Product Details

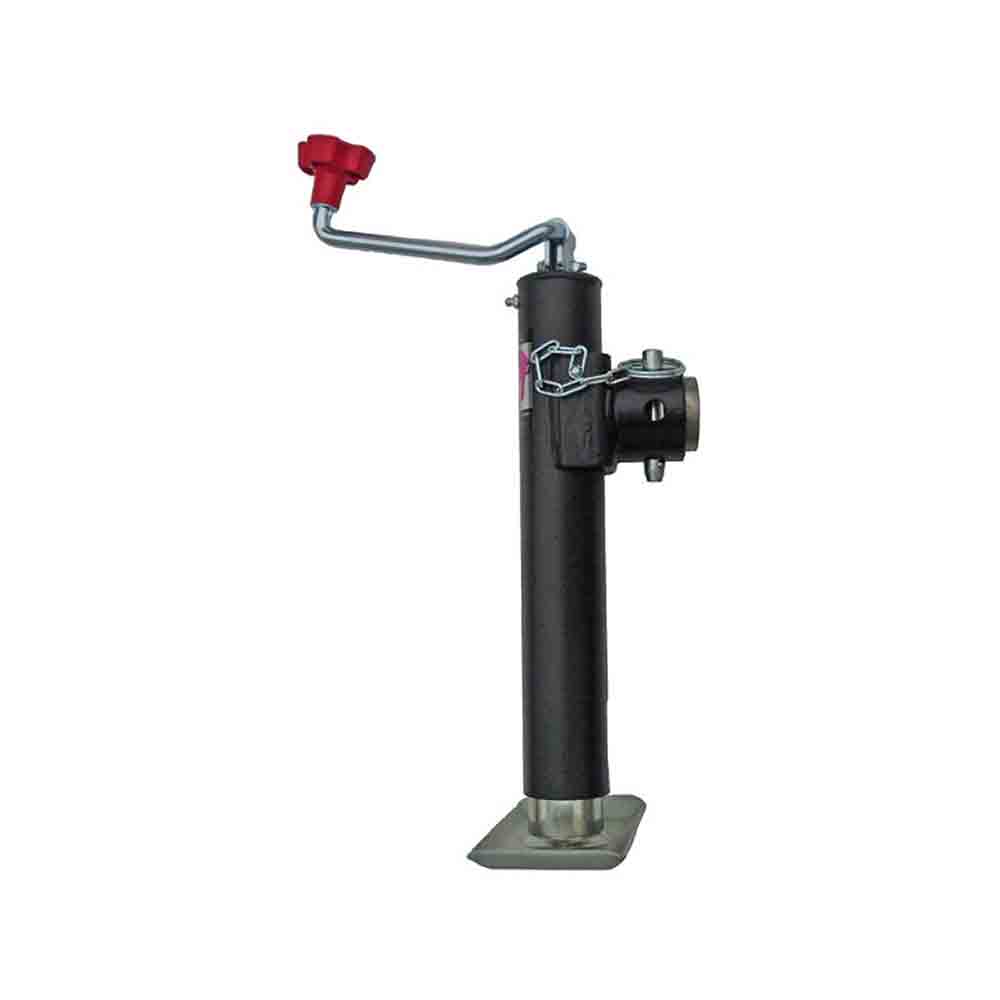

Topwind Pipe Mount Swivel Jack
- 10" Travel
- 11" bracket height from bottom of jack to center of swivel mount
- 17" jack height when fully retracted
- 5,000 lb. Support Capacity
- 3,000 lb. Lift Capacity
- 3-3/4" x 7-1/2" welded on durable zinc sand foot
- Solid-bar crank handle with red claw knob
- Black painted outer tube and zinc plated inner tube
- Includes weld-on pipe mount and 9/16 inch pin and clip
- Comfortable claw knob and clear zinc solid bar handle that can be folded away when not in use
- 9/16" pin and lanyard assembly affixed to the jack
- Grease zerk for easy greasing of jack
- Durable exterior grade black powder coat finish on outer tube
- Includes a 2" raw round weld on mating pipe
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Top Wind |
| Extended B | 25-1/4 inch |
| Finish | Black |
| Lift Capacity | 3,000 lbs. |
| Mounting | Weld on |
| Retracted A | 15-1/4 inch |
| Support Capacity | 5,000 lbs. |
| Travel | 10 inch |
